Modell: 257173
| Item | Details |

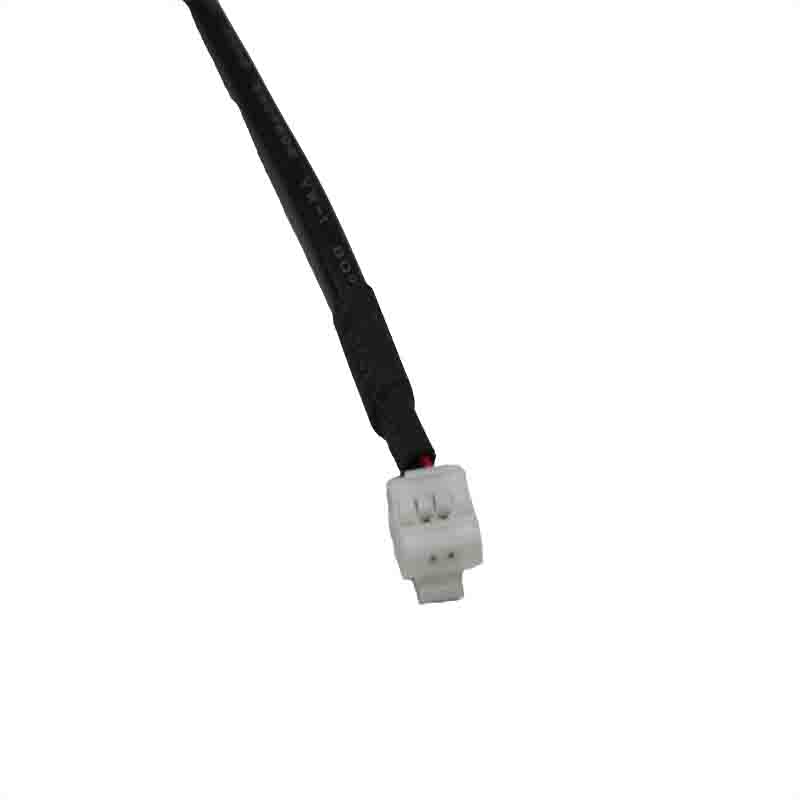

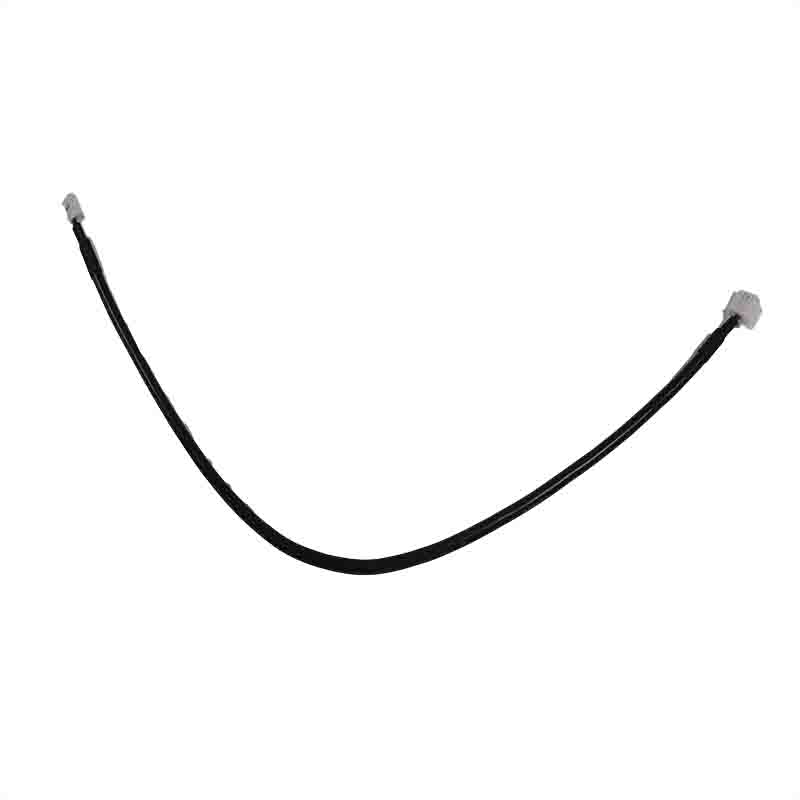

| Product Name | CAN Communication Cable |
| Length Specification | Total finished length: 400±10mm, effective wire length: 410mm |
| Wire Specification | UL2464 OD:5.0 24AWG*1P+D+AL 80P black PVC semi-matte, temperature resistance: -40℃～105℃, wire cores in red and black |
| Dual-End Connectors | P1 End: PH-4P H.S.G (PHB2.0-4P, 1*4, housing with latch); P2 End: 4P H.S.G (PHB2.0 female terminal) |
| Appearance Features |
1. Overall black sheathed cable with white plastic connectors on both ends.
2. Clear printing on the wire surface, free of deformation, scratches.
3. Heat shrink tube protection at both ends, neat structure, RoHS compliant peeling, rust and other defects
|
| Application Fields | Automotive electronics, industrial control, in-vehicle CAN bus systems, internal communication connection of equipment, etc., for CAN bus signal transmission |
| Core Technical Parameters |
1. 100% continuity, no short circuit, open circuit, intermittent connection or misalignment.
2. Test voltage: DC 300V 10MS.
3. Insulation resistance:4. Conduction resistance: 2Ω MAX 10MΩ MIN.
|
| Environmental Requirement | All materials comply with RoHS environmental standards |
