Modell: 106167
The file is encrypted. Please fill in the following information to continue accessing it
| Item | Details |
| Product Name | OBDII-16P Male to Dual OBDII-16P Female |
| Length Specification | Wire cutting size: 2×330±10mm; Finished length: 330mm; Reserved length at P3 terminal tail: 30±5mm |

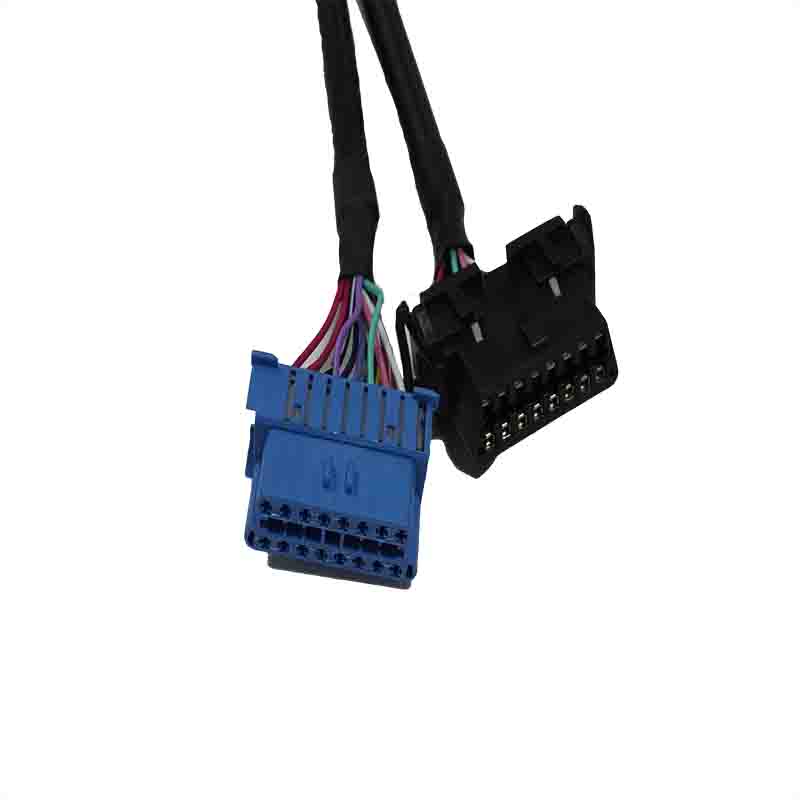

| Connector Specification | P1 End: OBDII-16P Male (Black PA66 FB, splitted housing);P2 End: OBDII-16P Female (Mercedes version, Blue housing, Gray latch);P3 End: OBDII-16P Female (Hyundai version, Black housing, Two Gray latches) |
| Wire Specification | UL2464 OD:10.0 20AWG*16C+AL Black PVC wire; Wire cores include full 16 PINs matched with colors: Brown, Orange, Yellow, Black, Green, Blue, Purple, Gray, White, Pink, Red, Light Green, Light Blue, Light Purple, etc. |
| PIN Assignment | P1 Male Pin 1-16 are fully connected to P2 Mercedes Female and P3 Hyundai Female Pin 1-16 with one-to-one correspondence; Wire colors perfectly match PIN definitions. |

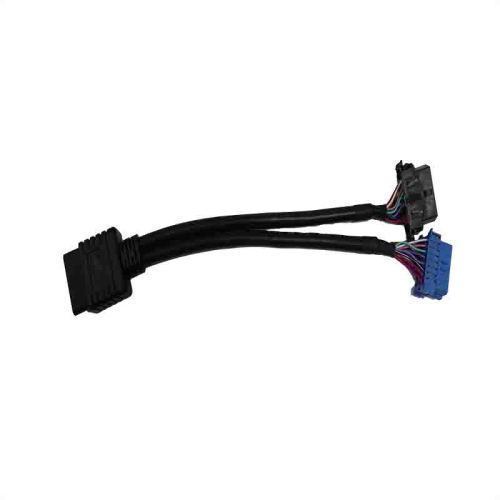

| Appearance Features | 1. Overall black double-branched cable with P1 black OBD male header, P2 blue Mercedes female header, and P3 black Hyundai female header for clear identification;2. Clear printing on the cable surface, heat shrink tube protection at branch points, free of deformation, scratches, peeling, rust and other defects;3. Firmly crimped terminals, all materials comply with RoHS environmental standards. |
| Application Fields | Automotive OBD diagnosis systems, in-vehicle diagnostic device expansion, automotive modification, vehicle fault detection, in-vehicle electronic device connection, etc., used for OBD interface 1-to-2 expansion. |
| Environmental Requirement | All materials comply with RoHS environmental standards. |
