Modell: 081972
The file is encrypted. Please fill in the following information to continue accessing it
| Item | Details |
| Product Name | JST connector harness |

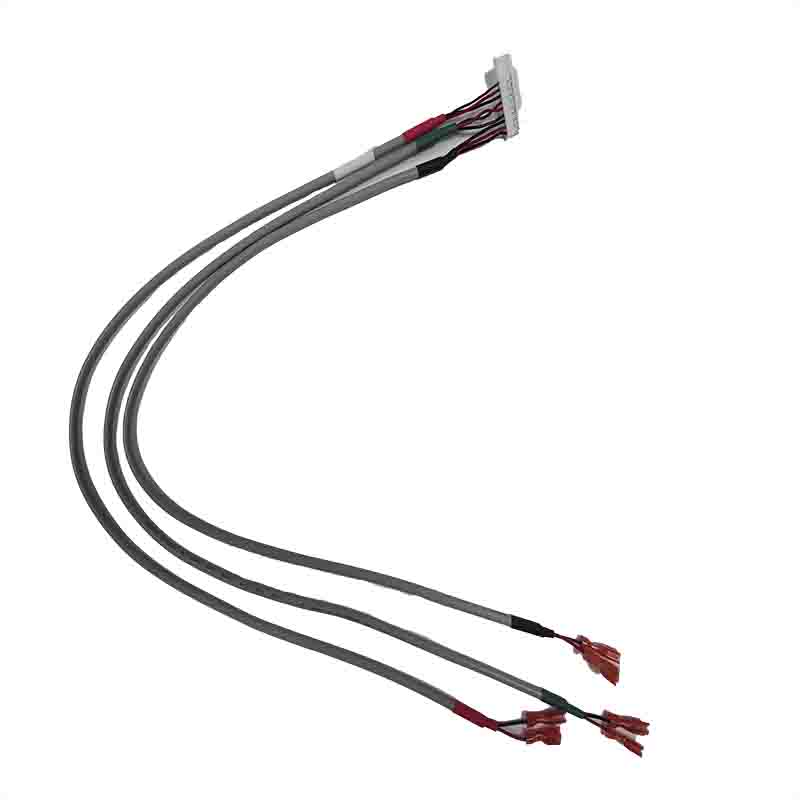

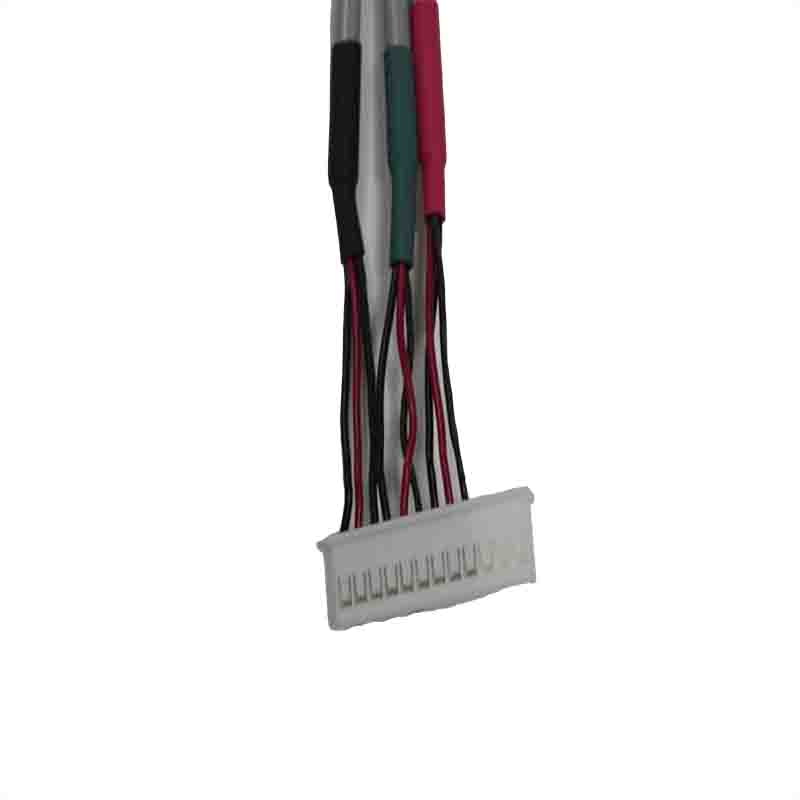

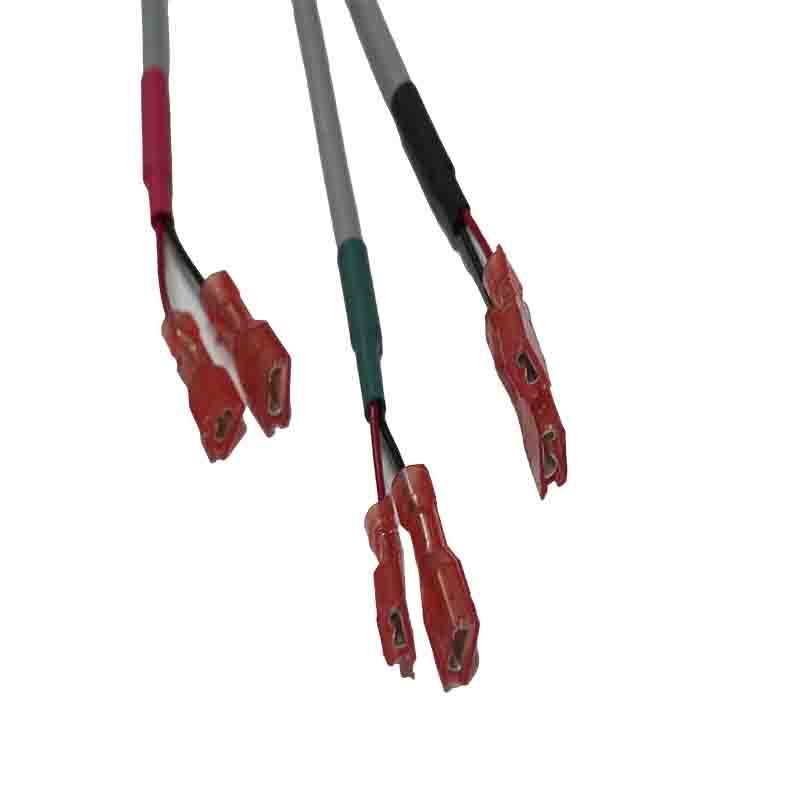

| Appearance Features | 1. Overall Structure: One end is a 12-pin white JST housing, the other end is split into three output branches, with red crimp terminals at the end; 2. Wire Specification: UL2464 22AWG tinned copper conductor, gray PVC outer jacket, wire length meets custom tolerance requirements; 3. Marking Design: Red, green, black, and white four-color heat shrink tubes are used to distinguish wire sequences, with production date printed on white tubes, and all heat shrink tubes must be flush; 4. Terminal Type: JST original crimp terminals at the housing end, TE original red crimp terminals at the end, available in large/small terminal specifications; 5. Appearance Standard: No deformation, missing material, blistering, scratches; no deformation, rust on pins, compliant with RoHS environmental requirements. |
| Electrical Performance | 1. 100% continuity, no short circuit, open circuit, instantaneous disconnection or misalignment; 2. Withstand voltage test: DC 300V 10MS; 3. Continuity impedance: ≤2Ω MAX; 4. Insulation impedance: ≥10MΩ MIN; 5. Pull force between terminal and core wire: ≥5Lb(≥2.27KG). |
| Application Fields | Internal connection of equipment requiring 12-pin signal transmission such as automotive electronics, industrial control, smart home, consumer electronics, suitable for branch wiring and terminal crimping scenarios. |
| Production Standard | Compliant with RoHS environmental requirements, strictly follows drawing dimensional tolerances and electrical test standards. |
