Shenzhen Fubang Wire harness Co.,Ltd
Modell: 081-1066
The file is encrypted. Please fill in the following information to continue accessing it
| Item | Details |
| Product Name | waterproof car connector |

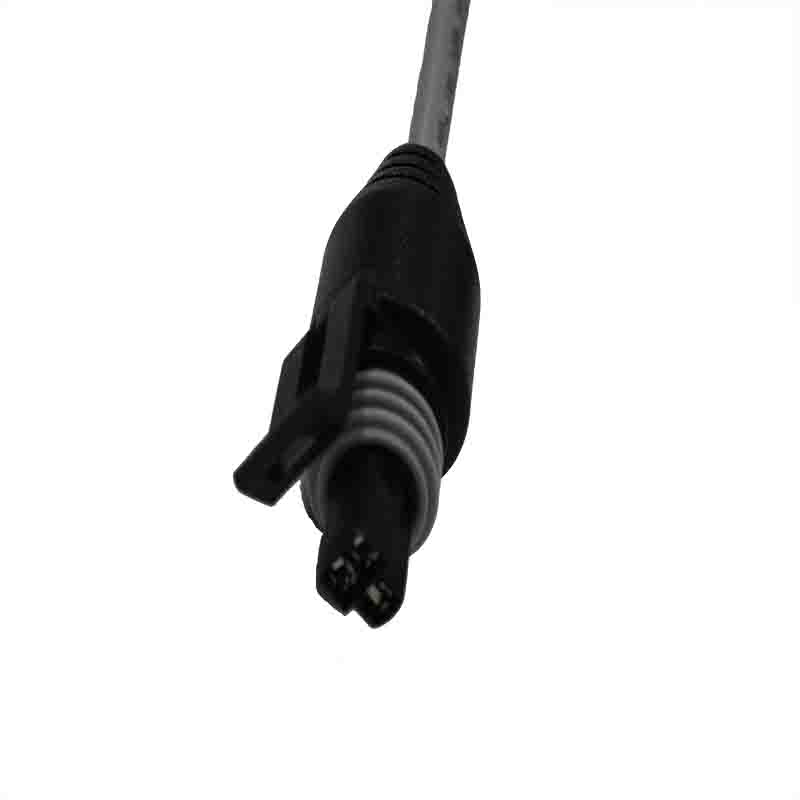

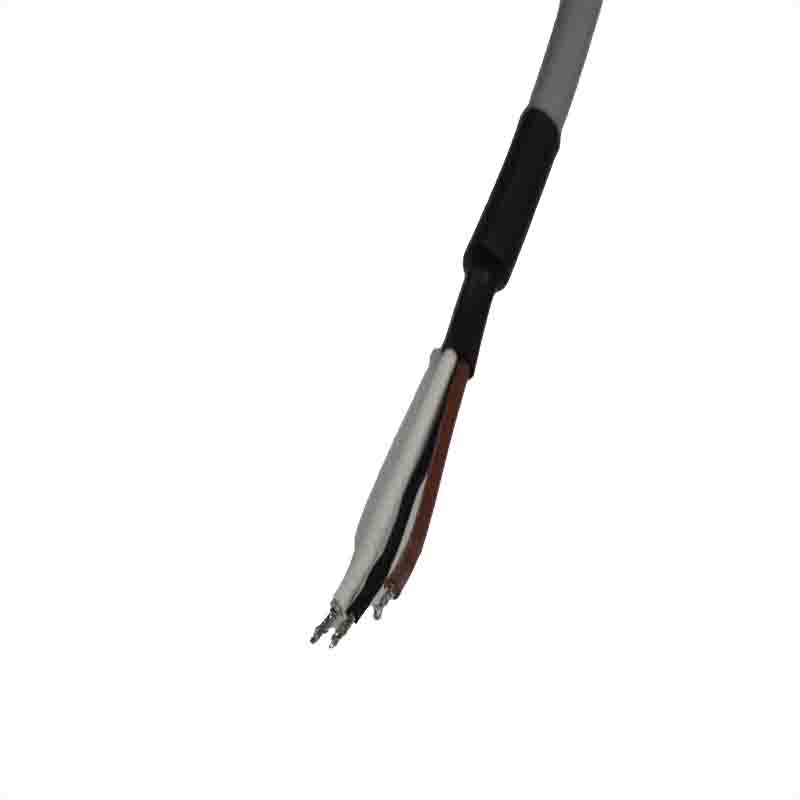

| Appearance Features | One end is a 3P waterproof male connector with a snap-lock structure, black PVC housing for waterproof and dustproof performance.- The main cable is made of gray PVC jacket, with a smooth surface printed with UL, ROHS and other certification marks.- The other end is a tinned open end, with white, brown and ground wire cores, protected by a black heat-shrink tube for strain relief.- The overall appearance is neat, free from defects such as deformation, burrs and material shortage, and meets RoHS environmental requirements. |
| Structural Characteristics | Connector End: 3P male connector with built-in PE inner/outer mold and silicone ring for waterproof sealing; terminals are made of tinned copper.- Cable Part: UL2464 18AWG specification, consisting of 2 cores (white/brown) + 1 ground wire; conductor is tinned copper, jacket is gray PVC with temperature resistance of -40℃~80℃.- Protection Structure: Heat-shrink tubes are applied at the connector-cable junction and open end stripping area for central heat shrink protection, enhancing mechanical strength and insulation.- Electrical Performance: 100% continuity test; insulation resistance ≥10MΩ; conduction resistance ≤2Ω; withstand voltage DC 300V/10MS. |
| Application Fields | Mainly used in automotive electronic systems, such as signal/power transmission for on-board sensors, lamps, car audio and video, etc.; also applicable to industrial control, outdoor equipment and other scenarios requiring waterproof connection. |

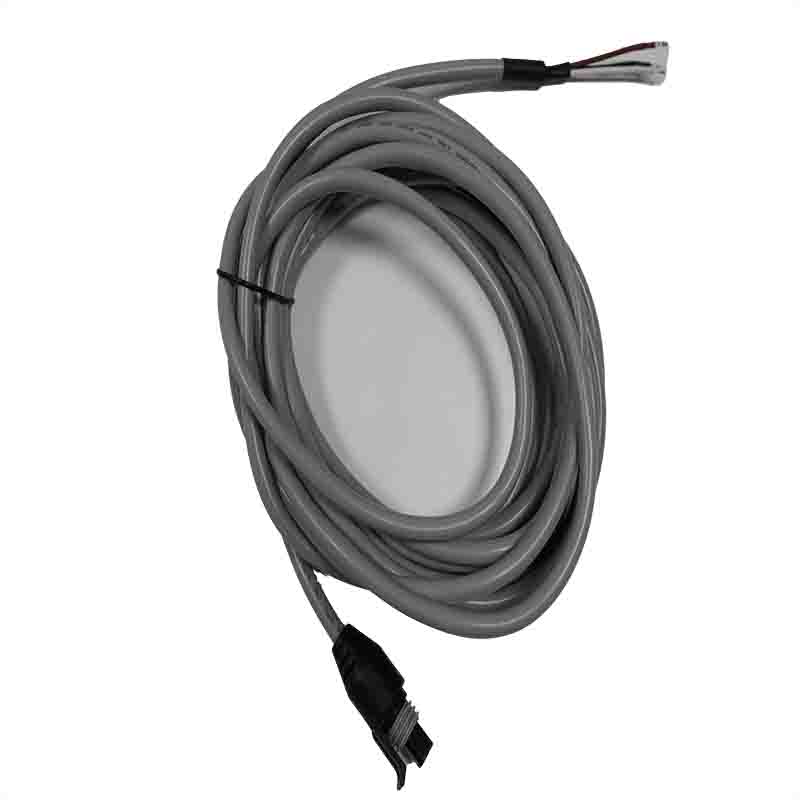

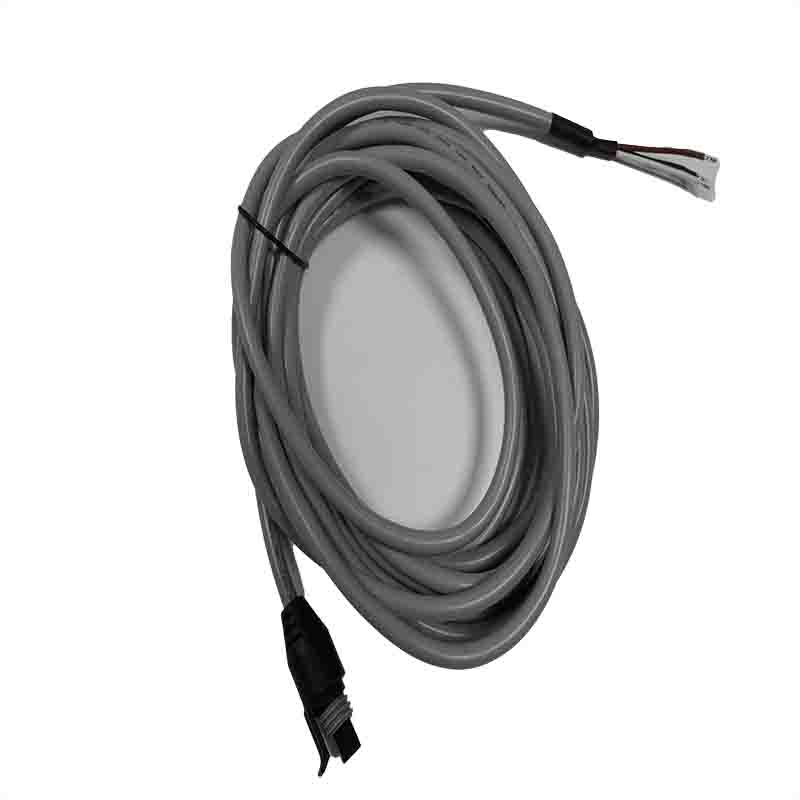

| Length | Standard length: 5080±50mm (approx. 5 meters), customizable as required. |
| Packaging Method | Coiled and tied in bags, then packed in cartons for shipment. |
